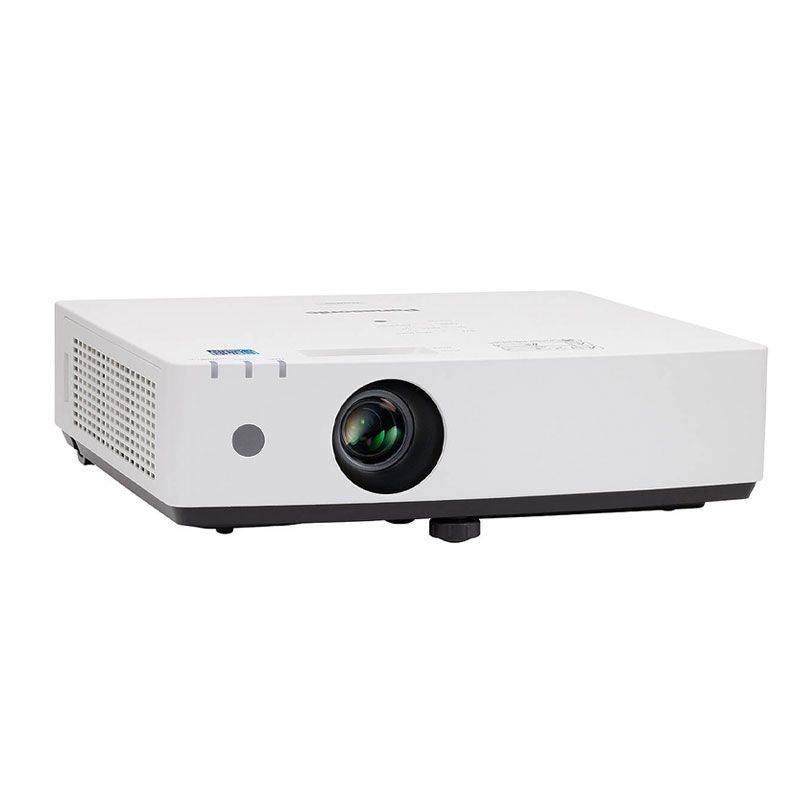

Panasonic PT-LMZ460 4600 Lumens WUXGA 3LCD Laser Projector
Product series
|
PT-LMZ460 series
|
||||||
|---|---|---|---|---|---|---|
| Model | ||||||
| Projector Type |
LCD projectors
|
LCD projectors
|
LCD projectors
|
LCD projectors
|
LCD projectors
|
|
| LCD Panel | Panel Size |
16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
|
16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
|
16.0 mm (0.63 in) diagonal (4:3 aspect ratio)
|
16.0 mm (0.63 in) diagonal (4:3 aspect ratio)
|
16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
|
16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
|
| LCD Panel | Pixels |
1,024,000 (1280 x 800) pixels
|
2,304,000 (1920 x 1200) pixels
|
786,432 (1024 x 768) pixels
|
786,432 (1024 x 768) pixels
|
1,024,000 (1280 x 800) pixels
|
2,304,000 (1920 x 1200) pixels
|
| Brightness |
4,600 lm
|
4,600 lm
|
4,200 lm
|
4,600 lm
|
4,200 lm
|
4,200 lm
|
| Light Source |
Laser diodes
|
Laser diodes
|
Laser diodes
|
Laser diodes
|
Laser diodes
|
Laser diodes
|
| Time until light output declines to 50 % |
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
|
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
|
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
|
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
|
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
|
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
|
| Resolution |
WXGA (1280 x 800 pixels)
|
WUXGA (1920 x 1200 pixels)
|
XGA (1024 x 768 pixels)
|
XGA (1024 x 768 pixels)
|
WXGA (1280 x 800 pixels)
|
WUXGA (1920 x 1200 pixels)
|
| Speaker |
10 W monaural
|
10 W monaural
|
10 W monaural
|
10 W monaural
|
10 W monaural
|
10 W monaural
|
| Contrast Ratio |
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
|
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
|
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
|
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
|
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
|
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
|
| Screen Size |
0.76–7.62 m (30–300 in), 16:10 aspect ratio
|
0.76–7.62 m (30–300 in), 16:10 aspect ratio
|
0.76–7.62 m (30–300 in), 4:3 aspect ratio
|
0.76–7.62 m (30–300 in), 4:3 aspect ratio
|
0.76–7.62 m (30–300 in), 16:10 aspect ratio
|
0.76–7.62 m (30–300 in), 16:10 aspect ratio
|
| Lens |
1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm
|
1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm
|
1.2x manual zoom (throw ratio: 1.47–1.77:1),manual focus lens, F 1.61–1.76, f 19.1–23.0 mm
|
1.2x manual zoom (throw ratio: 1.47–1.77:1),manual focus lens, F 1.61–1.76, f 19.1–23.0 mm
|
1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm
|
1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm
|
| Digital Zoom Extender |
Throw ratio: 1.36–2.05:1*5 (Corresponding value. When used together with optical zoom.)
|
Throw ratio: 1.36–2.05:1*5 (Corresponding value. When used together with optical zoom.)
|
Throw ratio: 1.47–2.22:1*5 (Corresponding value.When used together with optical zoom.)
|
Throw ratio: 1.47–2.22:1*5 (Corresponding value.When used together with optical zoom.)
|
Throw ratio: 1.36–2.05:1*5 (Corresponding value. When used together with optical zoom.)
|
Throw ratio: 1.36–2.05:1*5 (Corresponding value. When used together with optical zoom.)
|

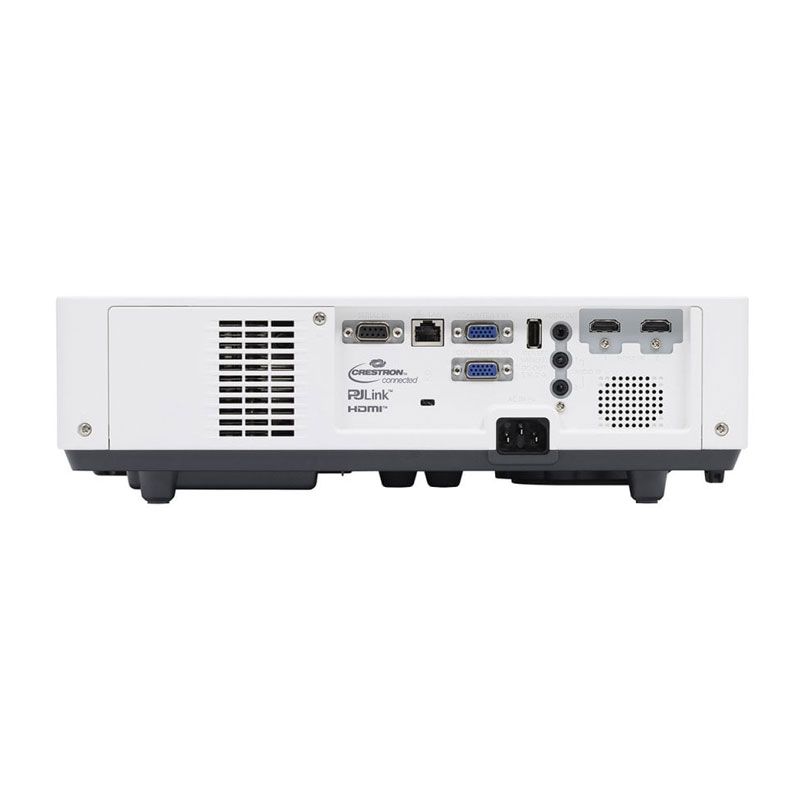

| Terminals | HDMI 1/2 IN |
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7
|
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7
|
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7
|
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7
|
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7
|
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7
|
| Terminals | Computer 1 In |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
| Terminals | Computer 2 In |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
|
| Terminals | AUDIO 1/2 IN |
M3 stereo mini-jack x 2
|
M3 stereo mini-jack x 2
|
M3 stereo mini-jack x 2
|
M3 stereo mini-jack x 2
|
M3 stereo mini-jack x 2
|
M3 stereo mini-jack x 2
|
| Terminals | Audio Out |
M3 stereo mini-jack x 1
|
M3 stereo mini-jack x 1
|
M3 stereo mini-jack x 1
|
M3 stereo mini-jack x 1
|
M3 stereo mini-jack x 1
|
M3 stereo mini-jack x 1
|
| Terminals | Serial In |
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
|
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
|
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
|
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
|
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
|
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
|
| Terminals | LAN |
RJ-45 x 1 for network control, 10Base-T, 100Base-TX
|
RJ-45 x 1 for network control, 10Base-T, 100Base-TX
|
RJ-45 x 1 for network control, 10Base-T, 100Base-TX
|
RJ-45 x 1 for network control, 10Base-T, 100Base-TX
|
RJ-45 x 1 for network control, 10Base-T, 100Base-TX
|
RJ-45 x 1 for network control, 10Base-T, 100Base-TX
|
| Terminals | USB (VIEWER/WIRELESS/DC OUT) |
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)
|
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)
|
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)
|
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)
|
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)
|
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)
|
| Protocol versions |
IPv4
|
IPv4
|
IPv4
|
IPv4
|
IPv4
|
IPv4
|
| Power Supply |
AC 100 V–240 V, 50/60 Hz
|
AC 100 V–240 V, 50/60 Hz
|
AC 100 V–240 V, 50/60 Hz
|
AC 100 V–240 V, 50/60 Hz
|
AC 100 V–240 V, 50/60 Hz
|
AC 100 V–240 V, 50/60 Hz
|
| Power Consumption | On-mode power consumption (Light Power) |
[NORMAL]: 205 W (100–240 V), 195 W (200–240 V)[ECO]: 155 W (100–240 V), 145 W (200–240 V)[QUIET]: 150 W (100–240 V), 145 W (200–240 V)
|
[NORMAL]: 215 W (100–240 V), 205 W (200–240 V)[ECO]: 165 W (100–240 V), 160 W (200–240 V)[QUIET]: 160 W (100–240 V), 155 W (200–240 V)
|
[NORMAL]: 205 W (100–240 V), 195 W (200–240 V)[ECO]: 155 W (100–240 V), 145 W (200–240 V)[QUIET]: 150 W (100–240 V), 145 W (200–240 V)
|
[NORMAL]: 205 W (100–240 V), 195 W (200–240 V)[ECO]: 155 W (100–240 V), 145 W (200–240 V)[QUIET]: 150 W (100–240 V), 145 W (200–240 V)
|
[NORMAL]: 205 W (100–240 V), 195 W (200–240 V)[ECO]: 155 W (100–240 V), 145 W (200–240 V)[QUIET]: 150 W (100–240 V), 145 W (200–240 V)
|
[NORMAL]: 215 W (100–240 V), 205 W (200–240 V)[ECO]: 165 W (100–240 V), 160 W (200–240 V)[QUIET]: 160 W (100–240 V), 155 W (200–240 V)
|
| Filter |
Included (Estimated maintenance time: approx. 20,000 hours)
|
Included (Estimated maintenance time: approx. 20,000 hours)
|
Included (Estimated maintenance time: approx. 20,000 hours)
|
Included (Estimated maintenance time: approx. 20,000 hours)
|
Included (Estimated maintenance time: approx. 20,000 hours)
|
Included (Estimated maintenance time: approx. 20,000 hours)
|
| Operation noise |
35 dB (NORMAL/ECO),24 dB (QUIET)
|
35 dB (NORMAL/ECO),24 dB (QUIET)
|
33 dB (NORMAL/ECO),23 dB (QUIET)
|
35 dB (NORMAL/ECO),24 dB (QUIET)
|
33 dB (NORMAL/ECO),23 dB (QUIET)
|
33 dB (NORMAL/ECO),23 dB (QUIET)
|
| Dimensions |
349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)
|
349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)
|
349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)
|
349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)
|
349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)
|
349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)
|
| Weight |
Approx. 4.2 kg (9.26 lbs)
|
Approx. 4.2 kg (9.26 lbs)
|
Approx. 4.2 kg (9.26 lbs)
|
Approx. 4.2 kg (9.26 lbs)
|
Approx. 4.2 kg (9.26 lbs)
|
Approx. 4.2 kg (9.26 lbs)
|
| Operating Environment |
Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)
|
Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)
|
Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)
|
Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)
|
Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)
|
Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)
|
| Applicable Software |
Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®*13, Wireless Projector App for iOS/Android™*14
|
Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®*13, Wireless Projector App for iOS/Android™*14
|
Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®*13, Wireless Projector A
|
|||
