Panasonic PT-LW376 3600 Lumens WXGA Projector, Office, Education Use

Product details of Panasonic PT-LW376 3600 Lumens WXGA Projector, Office, Education Use





Panasonic PT-LW376 3600 Lumens WXGA Projector

LCD, 3,600 lumens, WXGA Lamp replacement cycle of up to 20,000 hours in Eco mode Wireless projection capability (optional) Quiet operation for distraction-free projection 16,000:1 contrast ratio

PROJECTOR TYPE: LCD projector



LCD PANEL

PANEL SIZE: 15.0 mm (0.59 in) diagonal (16:10 aspect ratio)

DISPLAY METHOD: Transparent LCD panel (x 3, R/G/B)

DRIVE METHOD: Active matrix method

NUMBER OF PIXELS: 1,024,000 (1280 x 800 pixels) x 3

LIGHT SOURCE: 230 W x 1 lamp

LIGHT OUTPUT*1: 3,600 lm

LAMP REPLACEMENT CYCLE*2: Normal: 10,000 h/Eco: 20,000 h/Quiet: 10,000 h

FILTER REPLACEMENT CYCLE: Normal: 5,000 h/Eco: 6,000 h/Quiet: 10,000 h

RESOLUTION: 1280 x 800 pixels

CONTRAST RATIO*1: 20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Lamp control: Normal)

SCREEN SIZE [DIAGONAL]: 0.76–7.62 m (30–300 in), 16:10 aspect ratio

CENTER-TO-CORNER ZONE RATIO*1: 85 %

LENS: Manual zoom (1.2x), manual focus lens, F = 1.6–1.76, f = 19.16–23.02 mm, throw ratio: 1.48–1.78:1

KEYSTONE CORRECTION RANGE: Vertical: ±35 ° (Auto, Manual), Horizontal: ±35 ° (Manual) (TBD)



INSTALLATION

Ceiling/floor, front/rear

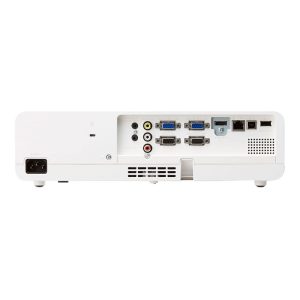

TERMINALS

HDMI® IN

HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color), Audio signal: Linear PCM (Sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)

COMPUTER 1 IN: D-sub HD 15-pin (female) x 1 [RGB/S-Video/YPB(CB)PR(CR)]

COMPUTER 2 IN/1 OUT: D-sub HD 15-pin (female) x 1 [RGB]

VIDEO IN: Pin jack x 1

AUDIO IN 1: M3 (L,R) x 1

AUDIO IN 2: Pin jack x 2 (L,R)

AUDIO OUT: M3 (L,R) x 1 (Variable)

LAN: RJ-45 x 1 for network connection, 10Base-T/100Base-TX, PJLink™ (Class 1) compatible

SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compatible)

USB A: USB Type-A (for Memory Viewer Light/Wireless Module [Output 5 V/2 A])

USB B: N/A

POWER SUPPLY: AC 100–240 V, 50/60 Hz

POWER CONSUMPTION: 300 W

BUILT-IN SPEAKER: 10 W monaural

CABINET MATERIALS: Molded plastic

OPERATION NOISE*1: Normal: 38 dB, Eco: 35 dB, Quiet: 30 dB

DIMENSIONS (W X H X D): 335 x 96*3 x 252 mm (13 3/16˝ x 3 25/32˝ *3 x 9 29/32˝ )

WEIGHT*4: Approx. 2.9 kg (6.4 lbs)





What’s in the box: 1 x Main unit, 1 x AC power cord · 1 x VGA Cable · 1 x Remote control · 1 x Battery for remote control · 1 x Projector Bag · 1 x User’s guide (CD-ROM) · 1 x Quick start guide
