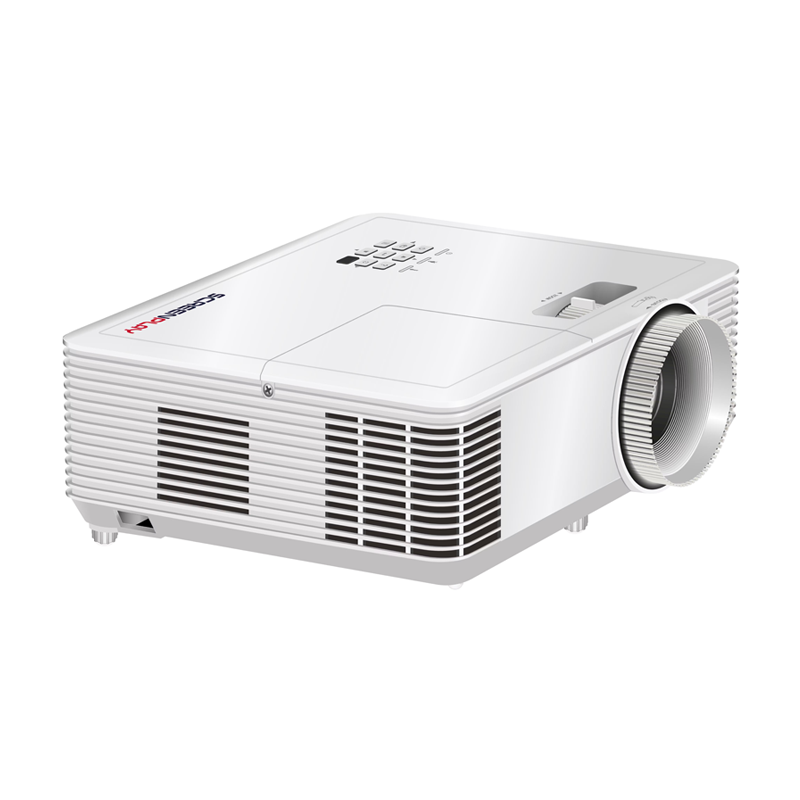

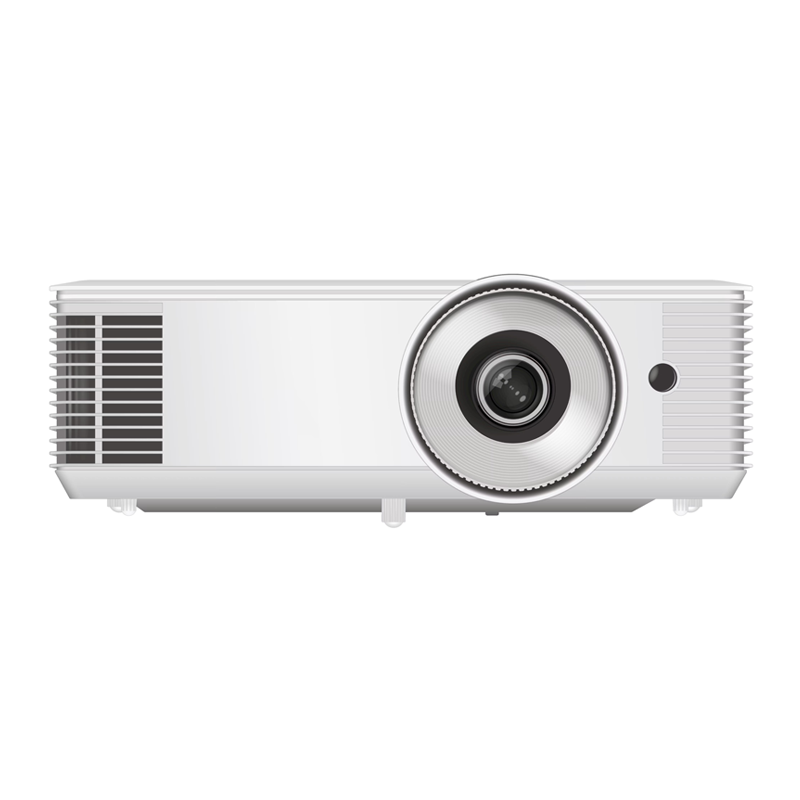

InFocus SP124 ScreenPlay Genesis XGA 4000 Lumens DLP Projector
Projection Technology
Texas Instruments DLP®
Panel Size
0.55″ DMD
Native Resolution
XGA
Pixels
1024 x 768
Aspect Ratio
4:3
Contrast Ratio
30000:1
Brightness (Lumens)
4000
Light Source
UHP Lamp
Light Source Life Maximum Hours
15000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
15 ~ 97.55
Vertical Sync. Range (Hz)
54 ~ 85
Uniformity (%)
80
Lens
1.1x
Lens Zoom Adjustment
Manual
Optional Lenses
–
Image Offset (%)
115
Focal Length (mm)
21.85 ~ 24.01
F-Stop
2.41
Vertical Lens shift (%)
–
Horizontal Lens shift (%)
–
Keystone Adjustment
Manual
Vertical Keystone Correction
± 40°
Horizontal Keystone Correction
–
Projection Factor
1.94 ~ 2.16:1
Projection Distance (Meters/Feet)
1.2 ~ 12.0 / 3.94 ~ 39.36
Optical Zoom
1.1:1
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs

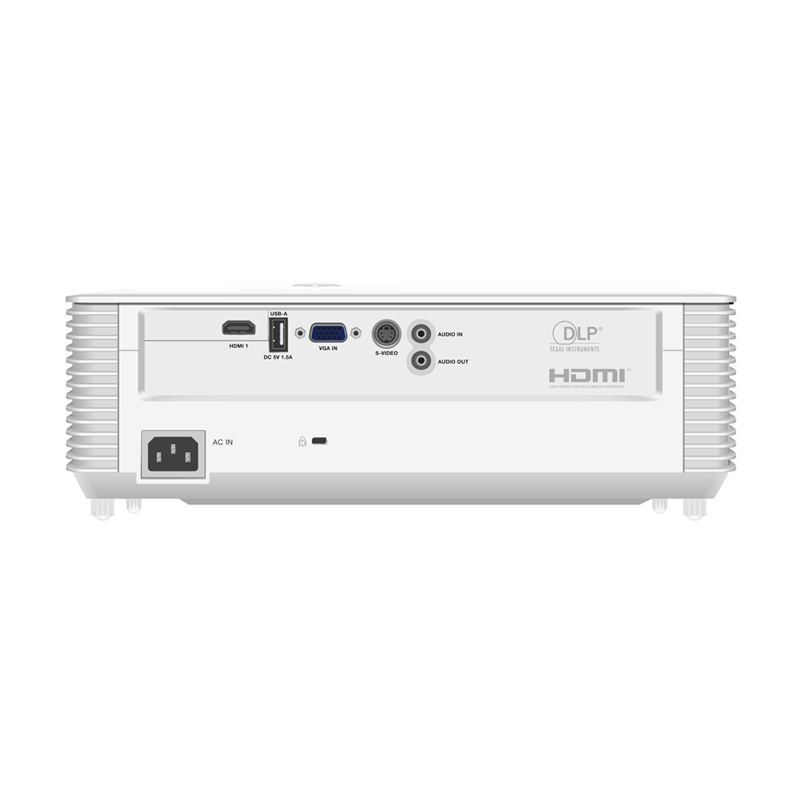

Mini D-sub 15-pin (VGA), S-Video, HDMI™ 1.4, 3.5 mm Stereo Mini Jack, USB-A for Service
Outputs
3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle
Networking & Control
–
Embedded System
–
3D
Full 3D All Major Formats
Power Supply
100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
267
Power Consumption Min. (W)
210
Power Consumption Network Standby (W)
–
Power Consumption Standby (W)
<0.5
Product Dimensions (L x W x H) (mm / in)
313 x 236 x 96.4 /12.4 x 9.3 x 3.8
Product Weight (Kilograms/Pounds)
2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in)
395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/Pounds)
4.1 / 9.0
Fan Noise (dB)
27
Audio (W)
1 x 3
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
