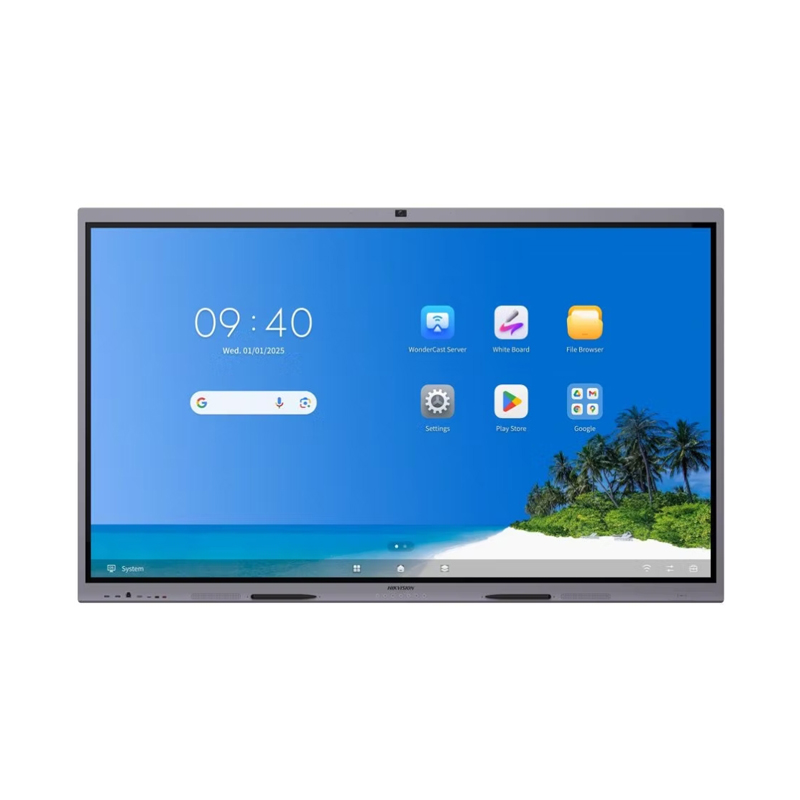

Hikvision DS-D5B65RB/FP 65-inch 4K Interactive Android Display
- Built-in Android 16 system, EDLA certified.
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows (optional with 195×30×180mm OPS), saving costs and easy to use, video conference software is recommended to run on the Windows system.
- Quick response, up to 50-point touch control, and a smooth writing experience.
- Built-in network switch chip eliminates the need for an external network switch.
- Multi-button front design, convenient for classroom use.
- All-in-one design with tempered glass and intelligent temperature control, making it environmentally friendly and safe.
Specification
-
Product Model
-
Display
-
Touch
-
Built-in System
-
Camera
-
Microphone
-
Internal Function
-
Interface
-
Power
-
Working Environment
-
General
- Product Model
- Product ModelDS-D5B65RB/FP
- Display
- Screen Size65 inch
- BacklightDLED
- Pixel Pitch0.124 (H) × 0.372 (V) mm
- Resolution3840 × 2160 @60 Hz
- Brightness450 cd/m² (Typ.)
- Color Depth10 bit (8 bit + FRC)
- Display Color1.07 G
- Response Time5 ms
- Panel TypeVA
- Contrast Ratio
5000:1 (Static)
30,000:1 (Dynamic)
- Color Gamut72% NTSC (CIE1931) (Typ.)
- Refresh Rate60 Hz
- Viewing Angle178° (H)/178° (V)
- Aspect Ratio16:9
- Surface Hardness
9H (Pencil)
7 (Mohs)
- Surface GlassAnti-Glare & Anti-Fingerprint glass
- Surface Haze25% Haze
- Glass Bonding MethodZero Lamination
- Display Area1428.48 (H) × 803.52 (V) mm
- Working Duration7 × 16 H
- Transmittance88% ± 3
- Lifespan50,000 hours
- Touch
- TypeInfrared Touch Screen
- Touch PointUp to 50-point multi-touch
- Touch Response Time≤ 2 ms
- Minimum Touch Object≥ 1.5 mm (≥ 90% touching area)
- Touch Precision± 0.5 mm (≥ 90% touching area)
- Touch Resolution32768 × 32768
- Built-in System
- Operation SystemAndroid 16.0
- Memory8 GB + Max 8 GB Virtual RAM
- Built-in Storage128 GB
- ProcessorQuad-core Cortex-A72 × 4（2.2 GHz）and quad-core Cortex-A53 × 4（1.8 GHz）
- GPUMali-G52 MC3
- HDCP Version2.3 & 2.2 & 1.4
- NPU6TOPs
- Camera
- Pixel48 MP for Photos & 8 MP for Video
- Camera FunctionIntelligent switching between Android, OPS, and external PC systems.
- Field Angle93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
- Distortion≤ 2.5%
- Camera Resolution RatioUp to 4K
- Microphone
- SpecificationOmni-directional 8-array layout
- Mic FunctionEcho reduction and smart noise-cancellation
- Voice Distance12 m
- Sampling Rate32 K
- Mic Depth16 bit
- Internal Function
- LoudspeakerBuilt-in 2 × 20 W + 25 W loudspeaker;
- BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
- NFC
Support card reader
13.56 MHz, (ISO 14443A/ ISO 14443B)
- Light SensorYes
- Image Processing TechnologySupport 3D digital noise reduction, face detection, automatic white balance, automatic purple fringing correction, automatic defogging, and shadow correction.
- AI FunctionAI Assistant, AI Identify, and AI Notes. Free for a 1-year validity period with 6,000 minutes for AI Notes.
- WhiteboardBuilt-in whiteboard supports handwriting recognition, graphics recognition, document insertion, and more.
- Audio Processing TechnologySupport dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
- ScreenCastBuilt-in WonderCast software supports screen casting for up to 9 devices simultaneously.
- Language SupportedSimplified Chinese, German, Italian, Arabic, Portuguese, Dutch, French, Indonesian, Thai, Vietnamese, Japanese, Spanish, English, Czech, Danish, Hungarian, Polish, Turkish, Russian, Romanian, Slovak, Korean, Uzbek, Bulgarian, Greek, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Hebrew, Ukrainian, Traditional Chinese (HK), Traditional Chinese (TW), Hindi, Latvian, Kazakh, Nepali
- Interface
- Video & Audio Input
HDMI 2.1 TMDS × 3（Front x 1; Rear x 2; Support HDCP2.3 & 2.2 & 1.4;HDMI1 Support CEC&ARC protocol）
VGA × 1（Rear）
Audio × 1（Rear）
- Video & audio output
HDMI 2.1 TMDS × 1（Rear）
Audio × 1（Rear）
SPDIF × 1（Rear）
- Control interface
TOUCH-USB 3.0 × 1（Front × 1）
TOUCH-USB 2.0 × 2（Rear × 2）
RS232 × 1（Rear）
- Network Interface
LAN (1000 Mbps) × 2（Rear）
Wi-Fi AP & Station, 2.4 G/5 G
Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission Interface
USB 3.0 × 3（Front × 2; Rear × 1）
USB 2.0 × 2（Rear × 2）
Type-C × 1 (Front × 1：Support USB 3.0, 65 W charging functions; support DP IN 1.4)
Type-C × 1 (Rear × 1：Support USB 2.0, 65 W charging functions; support DP IN 1.4)
- Power
- Power Supply100 to 240 VAC, 50/60 Hz
- Standby Consumption≤ 0.5 W
- Average Consumption< 160 W
- Working Environment
- Working Temperature0 °C to 40 °C (32 °F to 104 °F)
- Working Humidity10%~90% RH
- General
- VESA600 mm × 400 mm (4 × M8-25 mm)
- AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3.5 M HDMI cable (2.0), power cable, remote control, screen cleaning cloth.
- Package Dimensions (W × H × D)1662.0 × 1062.0 × 223.0 mm
- Net Weight33.4 ± 0.5 kg
- Gross Weight46.5 ± 0.5 kg
- Product Dimensions （With Wall Attachment）1488.5 × 910.6 × 111.7 mm
- Product Dimensions （Without Wall Attachment）1
