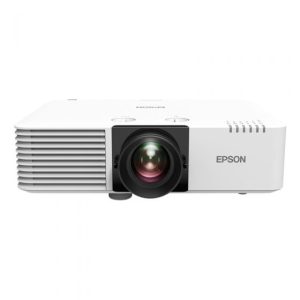

Epson EB-L570U WUXGA 5200 Lumens 3LCD Laser Projector with 4K Enhancement
Brilliant colours and stunning clarity in one compact projector, with 4K enhancement1
The versatile EB-L570U laser projector brings strikingly clear images to meeting rooms, classrooms and beyond. This conveniently lightweight, compact projector offers native WUXGA with 4K Enhancement1 and 5,200 lumens of brightness2, providing smooth, detailed images—even up close. The flexible display can switch between a variety of aspect ratios, including standard 16:10 up to 500”, plus ultra wide 21:9 that provides for a more immersive experience—ideal for hybrid work environments as well as classrooms. The more information that needs to be displayed on a single screen, the more critical the need for a larger display and higher resolution.
Simple to install, the EB-L570U is easy to operate from start to finish. Designed with convenience in mind, this projector features a 20,000 hour virtually maintenance-free laser light source and air filter3. Plus, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.
-
-
- 5,200 lumens of colour and white brightness2
- WUXGA with 4K Enhancement1 for clear, detailed images
- 20,000 hour, virtually maintenance-free laser light source and air filter3
- Project up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9
-
Projectors Facets:
Resolution, Projectors Facets:WUXGAContrast Ratio, Projectors Facets:5,000,000 : 1Inputs & Interfaces, Projectors Facets:RJ-45 & RS-232Brightness Range Lumens, Projectors Facets:4001Features, Projectors Facets:Edge Blending
Screen Mirroring
WifiLaser / Lamp, Projectors Facets:Laser
Projection Technology:
Projection Technology:RGB liquid crystal shutter projection system (3LCD)

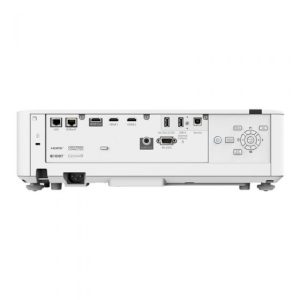

Connectivity:
Digital Input:HDMI: 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)Audio I/O:Audio Out: 1 (Stereo Mini)Control I/O:RS232C: 1 (D-sub 9pin)USB Input:USB Type A: 2 (Port1 for for PC Free, Firmware update, Wireless LAN, Document Camera, Copy OSD Settings, Content playback, External camera; Port2 for 5V/2A power supply only, no USB function)
USB Type B: 1 (For Firmware update, Copy OSD Settings)Network I/O:Wired LAN: 1 (RJ45)
Wireless LAN: Optional (Using ELPAP11)Digital Video Output:HDMI: 1 (HDCP 2.3)
Contrast Ratio:
Contrast Ratio:Over 5,000,000:1
Screen Size (Projected Distance):
Zoom : Wide:50” – 500” [1.44 – 14.76 m]Zoom : Tele:50” – 500” [2.35 – 23.84 m]
Geometric Correction:
Projection Orientation:360° Free
Operating Temperature:
Single Use:Low Altitude (0 – 2,286m/7,500ft): 0 – 45 °C <32 – 113 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 40 °C <32 – 104 °F>
20% – 80% Humidity, No CondensationMulti-projection Use:Low Altitude (0 – 2,286m/7,500ft): 0 – 40 °C <32 – 104 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 35 °C <32 – 95 °F>
20% – 80% Humidity, No Condensation
Operating Altitude:
Operating Altitude:Over 1,500m/4,921ft with High Altitude Mode: 0 – 3,048m (0 -10,000ft)
Start-Up Period:
Start-Up Period:8 seconds (Epson Logo); Warm-up Period: 30 secQuick Start-Up:Less than 7 seconds (Display)
Cool Down Period:
Cool Down Period:Instant Off
Internal Speaker(s):
Sound Output:10W Monaural
Weight:
Weight:Approx. 8.3kg
Air Filter:
Type:Electrostatic FilterMaintenance Cycle3 :20,000 hours (Normal) / 30,000 hours (Extended)
Fan Noise:
Fan Noise (Normal / Eco):31dB / 23dB
Power:
Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz
Main Parts Specification:
LCD:Size: 0.67″ (C2 Fine)
Resolution: WUXGA
Aspect Ratio: 16:10Projection Lens:Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.50 – 1.70
Focal Length: 20 mm – 31.8 mm
Zoom Ratio: 1.0 – 1.60
Throw Ratio: 1.35 – 2.20 (Wide – Tele)
Keystone Correction:
Vertical/Horizontal:±30°
Lightsource:
Type:Laser DiodeLight Source Life (Normal/ Extended):20,000/ 30,000 hrs
Direct Power On / Off:
Direct Power On / Off:Yes
Dimension Excluding Feet:
Dimension Excluding Feet (D x W x H):304 x 440 x 122 mm
Brightness2:
White Light Output (Normal/Eco):5,200lm / 3,640lmColour Light Output:5,200lm
Wireless Specifications (Optional Wireless LAN):
Supported Speed for Each Mode:Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps4
IEEE 802.11g (2.4GHz): 54 Mbps4
IEEE 802.11n (2.4GHz): 72.2 Mbps4
IEEE 802.11a (5GHz): 54 Mbps4
IEEE 802.11n (5GHz): 150.0 Mbps4
Access Point:
IEEE 802.11b (2.4GHz): 11 Mbps4
IEEE 802.11g (2.4GHz): 54 Mbps4
IEEE 802.11n (2.4GHz): 72.2 Mbps4
IEEE 802.11a (5GHz): 54 Mbps4
IEEE 802.11n (5GHz): 150.0 Mbps4
Supported Mode:Infrastructure, Access PointSupported Security Type:Infrastructure: OPEN (WPA2/WPA3-PSK/ WPA2/WPA3-EAP)
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point: WPA2-PSK (AES)
