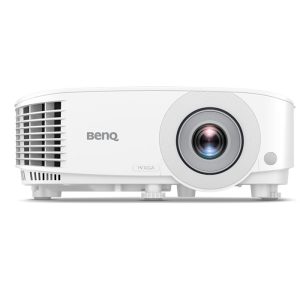

BenQ MW560 WXGA 4000 ANSI Lumens DLP Business Projector

All Specifications

Display

Brightness (ANSI lumens): 4000

Native Resolution: WXGA (1280×800)

Native Aspect Ratio: 16:10

Contrast Ratio (FOFO): 20,000:1

Display Color: 30-bit (1.07 billion colors)

Light Source: Lamp

Light Source Life: a. Normal 6000 hrs, b. ECO 10000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs

Optical

Throw Ratio: 1.55~1.7

Zoom Ratio: 1.1x

Lens: F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm

Projection Offset (Full-Height): 100%

Keystone Adjustment: 1D, Vertical ± 40 degrees


Picture Modes: 3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2

Compatibility

Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

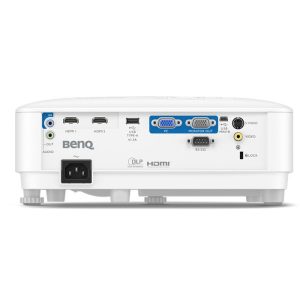

I/O Interface: PC in (D-sub 15pin)

(x1): Monitor out (D-sub 15pin)

(x1): Composite Video in (RCA)

(x1): S-Video in (Mini DIN 4pin)

(x1): HDMI in

(x2): HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)

USB Type A

(x1): USB Type Mini B

(x1):  RS232 in (DB-9pin)

Audio

Speaker: (x1), 10W

Audio in (3.5mm Mini Jack): 1

Audio out (3.5mm Mini Jack): 1

Environment

Operating Temperature: 0~40℃

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

260W/110V

Acoustic Noise (Typ./Eco.)(dB)

34/29

Accessories

Carry Bag: Yes,5J.J3T09.001 (optiol)

Remote Control w/ Battery: RCX016

Power Cord (by region): x1 (1.8M)

VGA(D-sub 15pin) Cable: (Standard), 1 (1.5m)

User Manual CD: 1 (24L)

3D Glasses: (Optional), DGD5

Quick Start Guide: 1 (21L)

Warranty Card (by region): Yes

Universal Ceiling Mount: (Optional), Yes, CMG3

Dimension & Weight

Dimensions (WxHxD) (mm): 296 x120 x221

Net Weight (kg): 2.3

Projection System

Projection System: DLP
