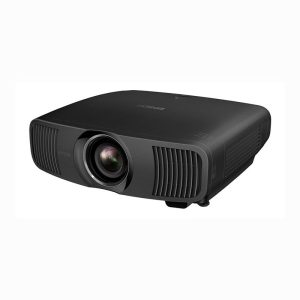

Epson EH-LS12000B 4K HDR10+ Home Theatre 3LCD Laser Projector
Prepare to be amazed
The ultimate home cinema demands the best in projection. Bring a state-of-the-art cinema experience to your home with Epson’s EH-LS12000B projector. Featuring revolutionary 3LCD laser projection technology, 4K resolution2 and HDR10+ support3, this high-definition projector delivers phenomenal image quality and colour brightness that elevates any screening to an enthralling cinematic experience. Be prepared to be amazed by jet-black to bright, colour rich quality images for unparalleled realism!
- 2700 lumens Colour and White brightness1
- 4K resolution2
- HDR10+ support3
- Frame interpolation of up to 4K 60fps
- Installation flexibility made possible with wide lens shift
Bring image to life
Using Epson’s proprietary shift device technology, a high aperture ratio 1080p panel is upscaled to 4K with incredible accuracy and precision to deliver bright 4K images far beyond those seen in competing projectors.
Projection Technology:
Projection Technology:RGB liquid crystal shutter projection system
Specifications of Main Parts:
LCD:Size: 0.74” wide panel with SMLA (C2Fine, 12bit, OD)Lightsource:Type: Laser Diode: 198W
Laser Life: 20,000 hours (Normal / ECO)Resolution:4K*2
Pixel Number: 8.3M Dots (1920 x 1080 x 4)Native Resolution:1080pProjection Lens:Type: Power Zoom, Power Focus
Screen Size (Projected Distance):
Standard Size:100” diagonal 3.00 – 6.30m
Screen Size (Zoom: Wide): 50-300” (1.48m – 9.08m)
Screen Size (Zoom: Tele): 50-300” (3.13 – 18.99m)
Brightness:
White Light Output (Normal / Eco):2,700 lm / 1,000 lmColour Light Output:2700lmContrast Ratio:Over 2,500,000:1
Geometric Correction:
Vertical/Horizontal Keystone:Vertical Keystone: ±30 degrees
Horizontal keystone: ±30 degreesPoint Correction:YESQuick Corner:YES

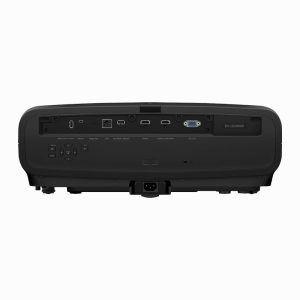

Connectivity:
USB Interface:USB Type A: 2 (1: Firmware Update, Copy OSD Settings,
Save Log or 5V/2A Power Supply; 2: For Opt HDMI
and 5V/300mA Power Supply)
USB Type Mini-B: 1 (For Firmware Update, Copy OSD Settings)Network:Wired LAN: RJ45 x 1Digital Input:HDMI: 2 (HDCP2.3; HDMI2: eARC/ARC)Control I/O:RS-232C: D-Sub 9pin x 1
Trigger Out (12V): 3.5mm Mini Jack x 1Wireless:Optional using Streaming Media stick ELPAP12.
Power:
Power Consumption:220 – 240V
Lamp/LD On (Normal / Eco): 302W / 198W
Standby (Network On / Off): 2W / 0.4WPower Supply Voltage:100 – 240 V AC +/- 10%, 50/60 Hz
Operating Altitude:
Operating Altitude:0 m to 3,048 m <0 ft to 10,000 ft> (over 1,500 m / 4,921 ft : with High altitude mode)
Start-Up Period:
Start-Up Period:Less than 8 seconds
Warm-up period: 30 seconds
Cool Down Period:
Cool Down Period:Instant Off
Direct Power On/Off:
Direct Power On/Off:Yes / NA
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):520 x 169 x 447mm
Weight:
Weight:Approx. 12.7 kg
Projection Lens:
Type:Power Zoom, Power Focus, Powered Lens ShiftFocal Length:22.5 – 46.7 mmZoom Ratio:1 – 2.1F-number:2.0 – 3.0Lens Shift:Vertical Lens Shift: ±96.3 % (H Center, Powered)
Horizontal Lens Shift: ±47.1 % (V Center, Powered)Screen Size:Zoom: Wide: 50” to 300” [1.48 to 9.08 m]
Zoom: Tele: 50” to 300” [3.13 to 18.99 m]
Standard Size: 100” screen 3.00 to 6.30 mThrow Ratio Range:1.35 – 2.84
Adjustment Functions:
Aspect Mode:Auto / Normal / Full / Zoom / Anamorphic Wide / Horizontal SqueezeFrame Interpolation:Yes
Image Enhancement:
Image Preset Mode:Yes (Off / Preset1 / Preset2 / Preset3 / Preset4 / Preset5)Mpeg Noise Reduction:YesSuper Resolution:YesScene Adaptive Gamma:YesAuto Contrast Enhancement:Yes
Operating Temperature:
Operating Temperature:5 – 35 °C <41 – 95 °F> (0m / 0ft – 2286m / 7,500ft)
5 – 30 °C <41 – 86 °F> (Over 2,286m / 7,500ft)
20% – 80% Humidity, No Condensation
