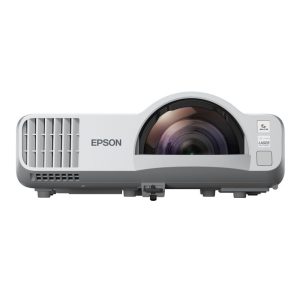

Epson EB-L210SW 4000 Lumens WXGA Wireless Short Throw Laser Projector
Lamp-free laser display for the classroom projects easy-to-read images up to 120″
Change the way you think about classroom displays with the EB-L210SW. Delivering 4,000 lumens of color and white brightness1 and high-quality WXGA resolution at up to 120″ diagonal size—more than three times larger than a 75″ flat panel—this short throw lamp-free laser display brings stunning clarity to presentations and encourages engagement with large, bright and easy-to-read images from nearly anywhere in the classroom. Engineered for reliability, this display has a 20,000-hour, virtually maintenance-free laser light source2, so there are no lamps to replace—ever. Sharing your lesson plans just got easier with wireless connectivity from PCs, Mac® computers, Chromebooks, and Android™ and iOS® devices3, as well as split screen functionality4 to display up to four devices simultaneously. You can project brilliant images, inspire collaboration and enjoy ease of use with the EB-L210SW—all at a remarkable value.
- 4,000 lumens of colour and white brightness1
- WXGA resolution for images up to 120″
- 20,000-hour lamp-free laser light source2
- Images more than three times larger than a 75″ flat panel
- Instant-on laser light source
Projection Technology:
Projection Technology:RGB liquid crystal shutter projection system
Connectivity:
Analog Input:D-Sub 15Pin: 2
Composite: RCA x 1 (Yellow)Digital Input:HDMI: 2 (HDCP 2.3)Analog Output:D-Sub 15Pin: 1 (Black) (in common with Computer 2)Audio Input:RCA: 1 (White, Red)
Stereo Mini Jack: 2Audio Output:Stereo Mini Jack: 1Mic I/O:Mic In: 1 (Stereo Mini)Control I/O:RS-232C: D-Sub 9pin x 1Others:USB Type A: 1 (For PC Free, Firmware Update, Copy OSD Settings or 5V/2A Power Supply)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)Network I/O:Wired LAN: RJ45 x 1 (100Mbps)
Wireless: Built-in and Optional wireless (using ELPAP11)
Contrast Ratio:
Contrast Ratio:Over 5,000,000 : 1
Screen Size (Projected Distance):
Standard Size:87″ screen 91 cmZoom : Wide:53″ to 120″ [54 cm to 126 cm]
Geometric Correction:
Vertical/Horizontal Keystone:±15° / ±15°Quick Corner:Yes (Manual)
Operating Temperature:
Operating Temperature:0 – 2286m (0-7500ft): 0°C – 40°C (32°F – 104°F); 20%-80% Humidity, No Condensation
Over 2286m(7500ft): 0°C – 35°C (32°F – 95°F); 20%-80% Humidity, No Condensation
Operating Altitude:
Operating Altitude:Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)
Start-Up Period:
Start-Up Period:Less than 9 seconds (Epson logo), Warm-up Period: 30 secondsQuick Start-Up:Less than 5 seconds (Display)
Cool Down Period:
Cool Down Period:Instant Off
Internal Speaker(s):
Sound Output:16W Monaural
Weight:
Weight:Approx. 4.6kg
Air Filter:
Type:Electrostatic FilterMaintenance Cycle:20,000 hours
Fan Noise:
Fan Noise (Normal / Eco):37dB / 27dB
Dimension Excluding Feet:
Dimension Excluding Feet (D x W x H):337mm x 325mm x 90mm
Brightness2:
Colour Light Output:4,000lm
White Light Output (Normal/Extended)
4,000lm / 2,800lm
Image:
Noise Reduction:YesSuper-Resolution:YesDetail Enhancement:Yes
Wireless Specification (In-built wireless LAN and Screen Mirroring):
Supported Speed for Each mode :Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps5
IEEE 802.11g (2.4GHz): 54 Mbps5
IEEE 802.11n (2.4GHz): 72.2 Mbps5
IEEE 802.11a (5GHz): 54 Mbps5
IEEE 802.11n (5GHz): 150.0 Mbps5
IEEE 802.11ac (5GHz): 325Mbps5
Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps5
IEEE 802.11n (2.4GHz): 72.2 Mbps5
IEEE 802.11a (5GHz): 54 Mbps5
IEEE 802.11n (5GHz): 150.0 Mbps5
IEEE 802.11ac (5GHz): 325Mbps5Supported Mode :Infrastructure, Access Point (Wi-Fi Direct)
Wireless LAN Security
Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Wireless Specifications (Optional Wireless LAN):
Supported Speed for Each Mode:Access Point (Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54Mbps5,
IEEE 802.11n (2.4GHz): 72.2Mbps5,
IEEE 802.11a (5GHz): 54Mbps5,
IEEE 802.11n (5GHz): 150Mbps5,
IEEE 802.11ac (5GHz): 325Mbps5
Supported Mode:Access Point (Wi-Fi Direct)Supported Security Type:WPA2-PSK (AES)
Projectors Facets:
Resolution, Projectors Facets:WXGAContrast Ratio, Projectors Facets:5,000,000 : 1Inputs & Interfaces, Projectors Facets:Epson Creative Projection App
RJ-45 & RS-232Brightness Range Lumens, Projectors Facets:4001Short Throw / Ultra Short Throw, Projectors Facets:Short ThrowFeatures, Projectors Facets:Screen Mirroring
Wifi
Short ThrowLaser / Lamp, Projectors Facets:LaserLight Source, Projectors Facets:Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs
Main Parts Specification:
LCD:Size: 0.59” (C2Fine)
Resolution: WXGA
Projection Lens
Type: No Optical Zoom / Focus (Manual)
F-number: 1.6
Focal Length: 6.4mm
Zoom Ratio: 1.0 – 1.35 (Digital Zoom)
Throw Ratio: 0.48 – 0.65
Lightsource:
Type:Laser DiodeLight Source Life (Normal/ Quiet/ Extended):20,000 / 20,000 / 30,000 hrs
Direct Power On / Off:
Direct Power On / Off:Yes
Power Supply Voltage:
Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz
Power Consumption
LD On (Normal / Extended): 260W / 191W
Standby (Network On / Off): 2.0W / 0.5W
